Chutes

Each Cattleac Chute is made of 3" x 3/16" square tubing for the frame, heavy wall pipe for the gates and fold-down bars. 12 gauge sheet metal for gates and 10 gauge for sides and drop doors. A 2" cold rolled solid shaft for the top center squeeze with pillow block bearings. For the floor a 1/4" plate with 1" rebar kleets. All linkages have heavy wall steel bushing in which the wall thickness is equal to half the size of the fitting bolt. Gates and bushings have grease zerts. The power unit consists of a 3HP industrial fan cooled motor with a V-10 vane pump. Together the two produce very little noise. Our sides have a 6 1/2" neck access opening for giving neck shots.

Cattleac introduces our new QuickLift, now available on all chutes!

C-I CATTLEAC CLASSIC WITH SCALES

Inside Length: 7'4"
Inside Height: 5'8"
Overall Length: 8'5"
Overall Height: 7'10"
Floor Width: 2'2"
Top Width: 5'

C-II CATTLEAC
(Longer Fold Down Bars)

Inside Length: 8'6"
Inside Height: 5'8"
Overall Length: 9'7"
Overall Height: 7'10"
Floor Width: 2'2"
Top Width: 5'

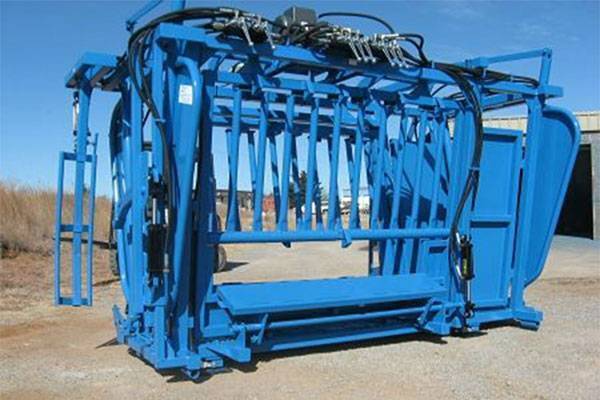

C-III CATTLEAC SPECIAL
(with built in palpation doors)

Inside Length: 9'4"
Inside Height: 5'8"
Overall Length: 10'4"
Overall Height: 7'10"
Floor Width: 2'2"
Top Width: 5'

C I Stocker Chute

Inside Length: 7'4"
Inside Height: 5'8"
Overall Length: 8'5"
Overall Height: 7'10"
Floor Width: 2'2"
Top Width: 5'

This chute has a larger opening in the neck access area. The fold down bars are longer for vaccinating and castrating procedures. It is also built with one drop door.

QuickLift

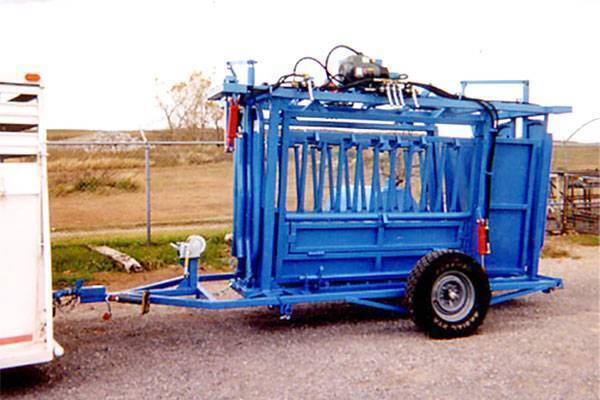

When you need to place a Wheel Kit -

When you are cutting bulls and need to get closer -

Cleaning and Maintenance -

Let The Hydraulics Do The Work!

TIP CHUTE

ALSO AVAILABLE:

SCALES:
Electronic Chute & Platform Scales, Manual Chutes, Panels & Gates

CALF TABLE C-T TIP UNIT:
Available for all chute models (with headrest & split drop door)
