Custom Built Squeeze Chutes

Click To Enlarge Photo

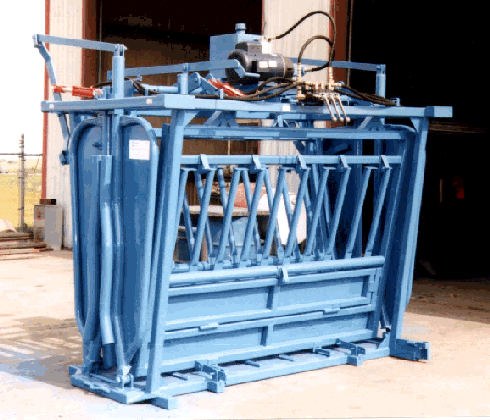

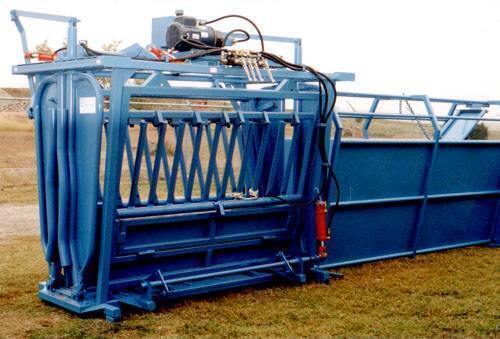

C-I CATTLEAC CLASSIC WITH SCALES

INSIDE LENGHT 7'4"
INSIDE HEIGHT 5'8"
OVERALL LENGHT 8'5"
OVERALL HEIGHT 7'10"
FLOOR WIDTH 2'2"
TOP WIDTH 5'

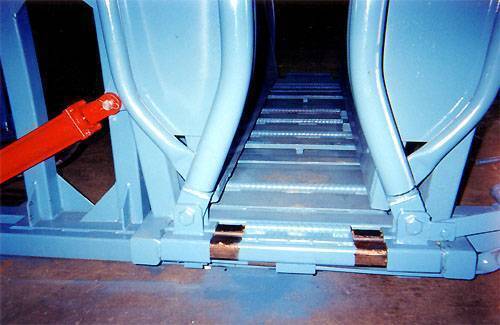

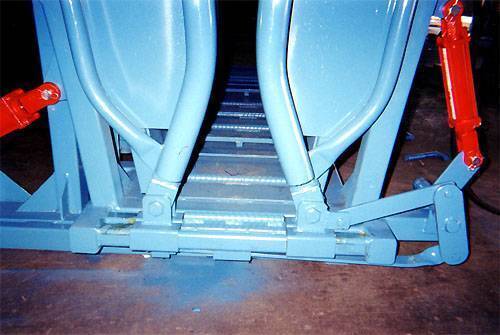

Hydraulic Adjustable Gate Bottoms

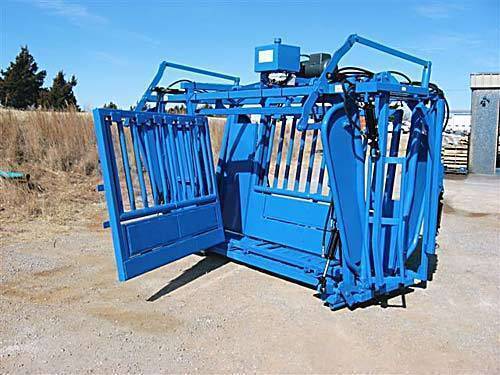

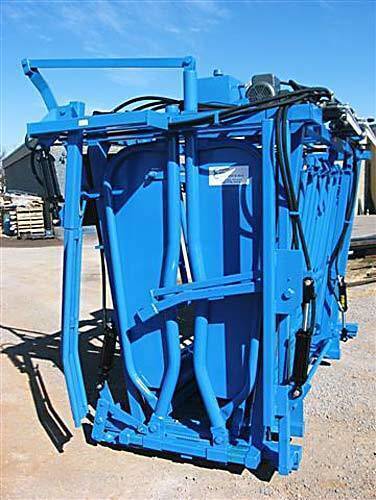

C-III CATTLEAC SPECIAL
(With built in palpation doors)

INSIDE LENGHT 9'4"
INSIDE HEIGHT 5'8"
OVERALL LENGHT 10'4"
OVERALL HEIGHT 7'10"
FLOOR WIDTH 2'2"
TOP WIDTH 5'

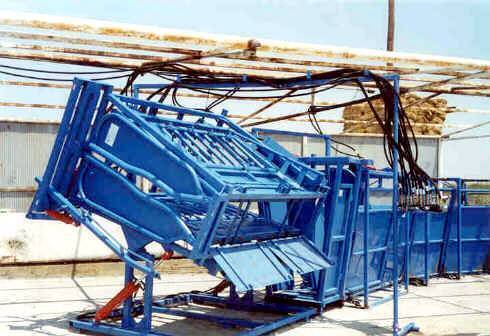

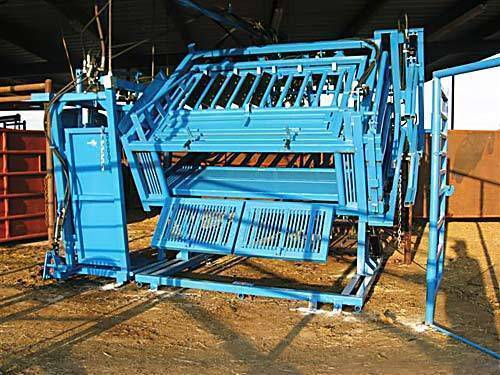

TIP CHUTE

Also Available
Scales

Electronic Chute & Platform Scales
Manual Chutes - Panels & Gates

Calf Table
C-T Tip Unit

Available For All Chute Models
(with headrest & split drop door)

TIP UNIT W/ DROP OUT FLOOR

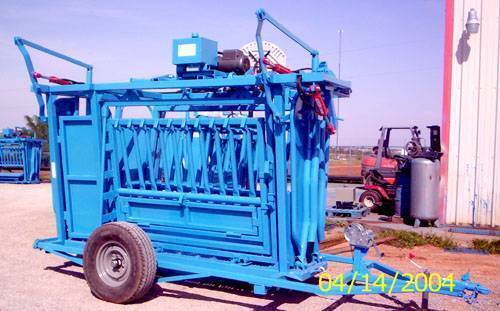

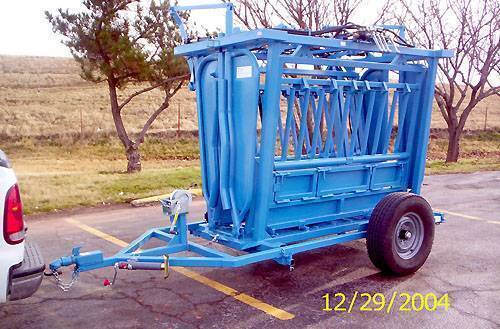

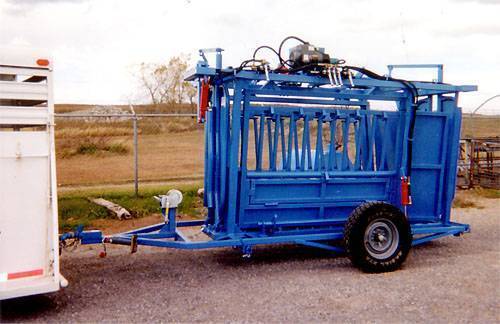

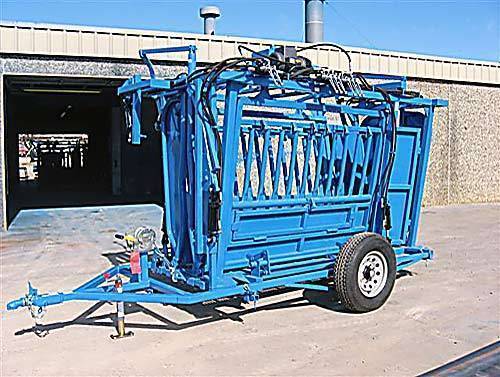

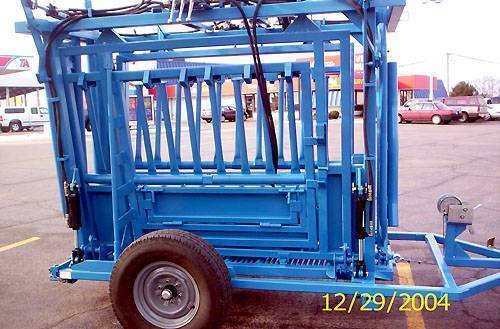

PORTABLE UNIT

C-III C-III

C-I C-I

OPTIONS

Gate Guards
Headbender & Headbar

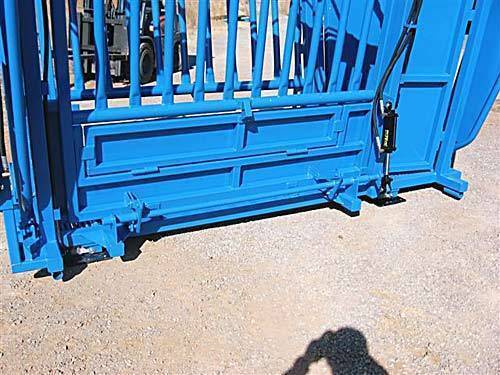

Hydraulic Bottom Adjustment Emergency Side Exit Door
Crash Door
Swivel Control
Leg Puller
Gas Unit




Each Cattleac Chute is made of 3" x 3/16" square tubing for the frame, heavy wall pipe for the gates and fold-down bars. 12 gauge sheet metal for gates and 10 gauge for sides and drop doors. A 2" cold rolled solid shaft for the top center squeeze with pillow block bearings. For the floor a 1/4" plate with 1" rebar kleets. All linkages have heavy wall steel bushing in which the wall thickness is equal to half the size of the fitting bolt. Gates and bushings have grease zerts. The power unit consists of a 3HP industrial fan cooled motor with a V-10 vane pump. Together the two produce very little noise. Our sides have a 6 1/2" neck access opening for giving neck shots.



  Available

Hydraulic Bottom          Gas Powered Unit
Emergency Exit          Head Bar
Implant Bars          Head Bender
Single Bars          Calf Nursing Door
Rebar Floor          Gate Guards
Hydraulic Leg Puller

         Hydraulic Adjustable Gates

Crash Gate          Swivel Control
Extra Tailgate          Control Valve
